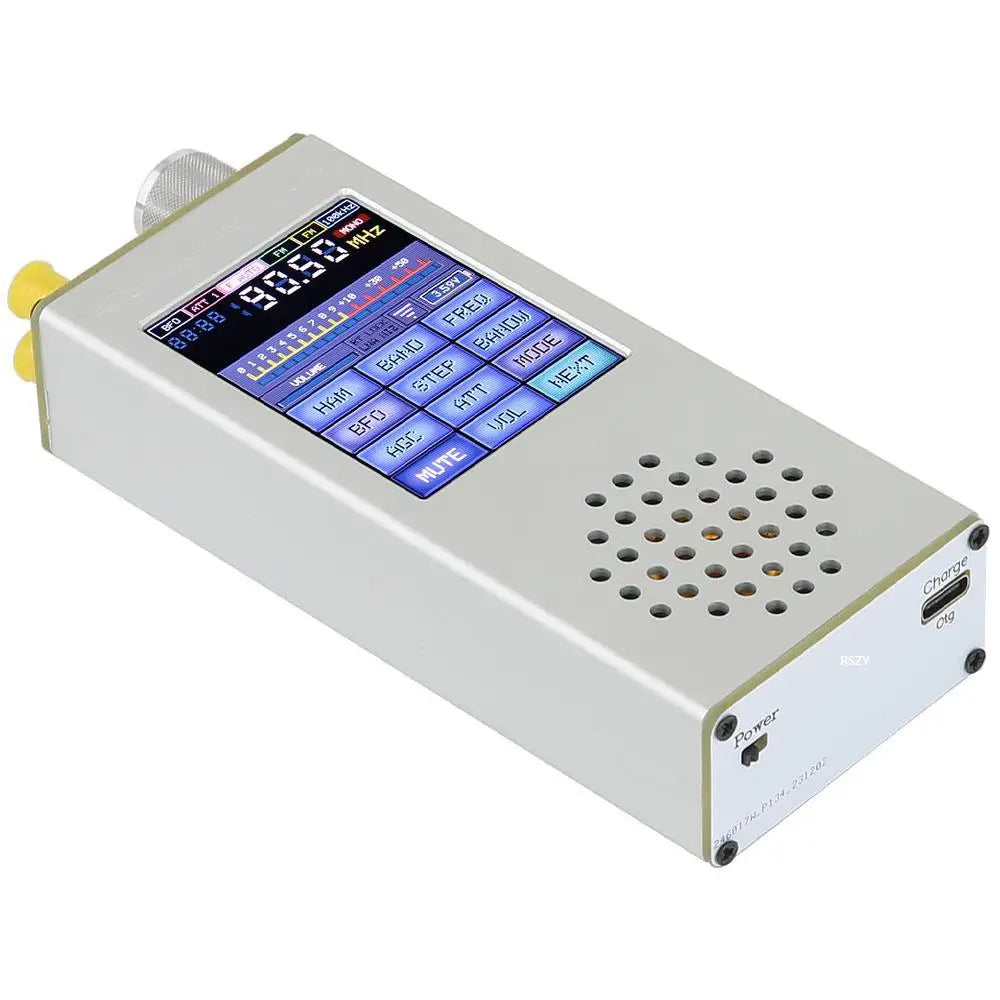

ATS-Decoder Pocket Si4732 Full Band Radio Receiver FM RDS AM LW MW SW SSB DSP with 4.17 Official Registered Code



What distinguishes it from other ATS radios?

In fact, it is the handheld version of the ATS25 MAX-DECODER, with the same functionality and performance. Since the launch of the ATS25 MAX-DECODER, many customers have wanted to have a handheld ATS25 radio, so we have redesigned the hardware as much as possible, so that the original ATS25 MAX-DECODER body can accommodate functions. It's all incorporated into the ATS-Decoder Pocket's mini body.



Attention:

- ATS-Decoder Pocket is an officially authorized version which can support online firmware update.

- Suggestion: WiFi is very power -consuming. Use only when activating keys. It usually only shows the date, time, please close it when you go out to save battery electricity.

- How to view key: Open the panel, click next to click Info, and twist the rotation, look at the picture above. You can see the 8-bit key, the standard is 12-bit. If necessary, please contact us for asking. The key will be stored in the machine for a long time without worrying about the firmware update.



Features:

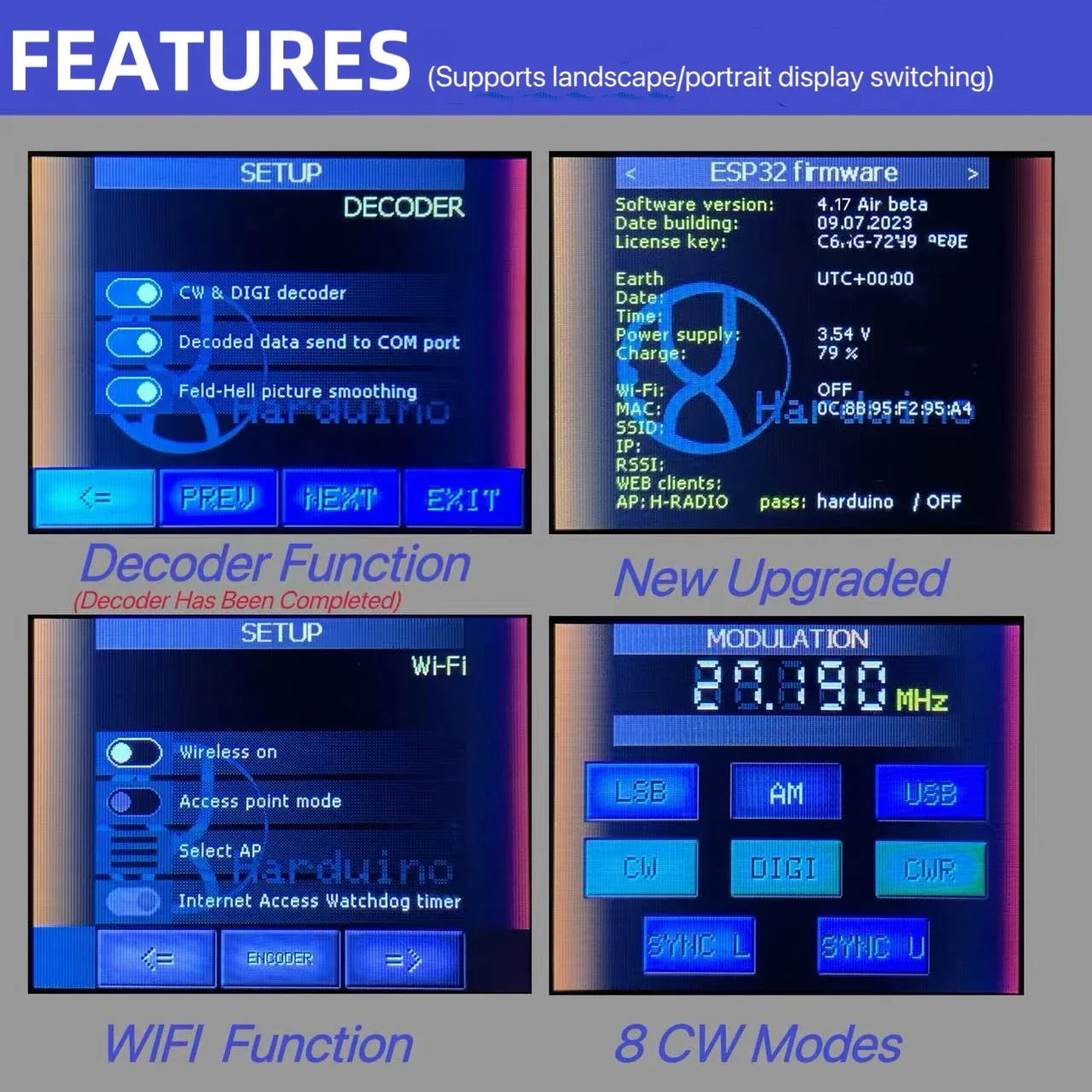

- Added CW, RTty F4 F8 decoding function and four audio spectrum

- Firmware H-RADIO 4.17

- Optimization of the memory usage of the microcontroller has been carried out to speed up the interface

- Removed the display of the RSSI/SNR signal in the form of a waterfall for the ILI9341 screen

- Fixed a frequency display error for the ILI9341 screen in FM and CB mode

- Fixed audio spectrum output error for the ILI99341 screen

- Improved accuracy of frequency display on the audio spectrum

- Added different modes of operation of the beeper for different modifications

- Fixed a frequency display error in the list of cities

- Fixed the error of displaying the decoder screen in CB mode

- Fixed the error of displaying the clock in the medium and long wave ranges in the synchro mode

- Added FT8 and FT4 decoder

- Changed the display of the DIGI decoding

- Added scrolling of the DIGI decoder buffer with saving decoded data to the decoder.log file in SPIFFS

- Fixed screen scrolling errors in SCAN

- Fixed the error of not muting the sound when starting a scan in SCAN for SYNC modulation

- Fixed the error of getting time via RDS

- Added Bluetooth on indicator, encoder lock and antenna options for all receiver modifications

- Added a quick access panel to Bluetooth settings, encoder lock and antenna options by clicking on the corresponding indicator

- Added SNR definition for SSB modulation based on spectrum analyzer data in the presence of a decoder

- Added the ability to mirror the screen

- SI4732 full-band DSP radio receiver FM LW (MW and SW) and SSB with 2.4 "touch screen



Product Parameters:

- Shell material: aluminum alloy

- 3.7V /4000mA built-in lithium battery

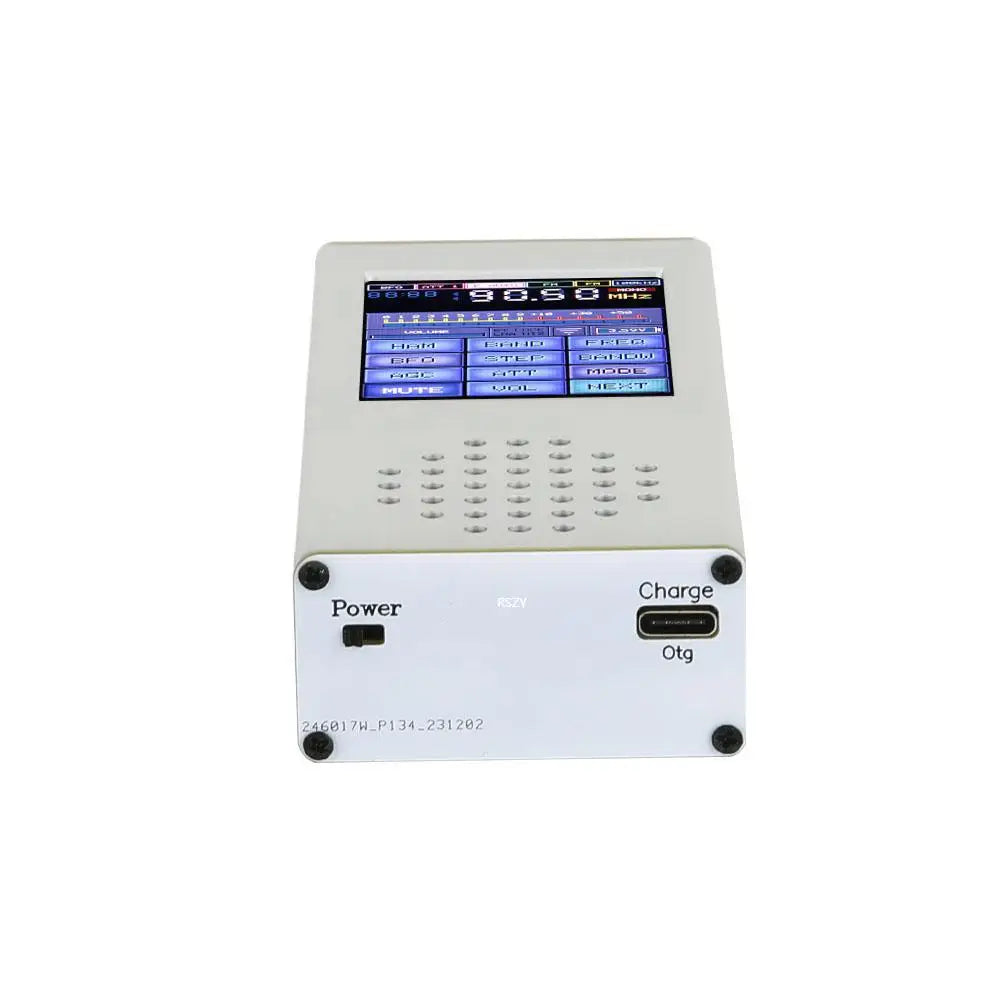

- Type-C charging interface and maximum 1.2A charging current

- Type-c interface upgrade solution

- Support 3.5mm stereo audio output

- Forian interface BNC

- Support 3.5mm audio jack FM antenna

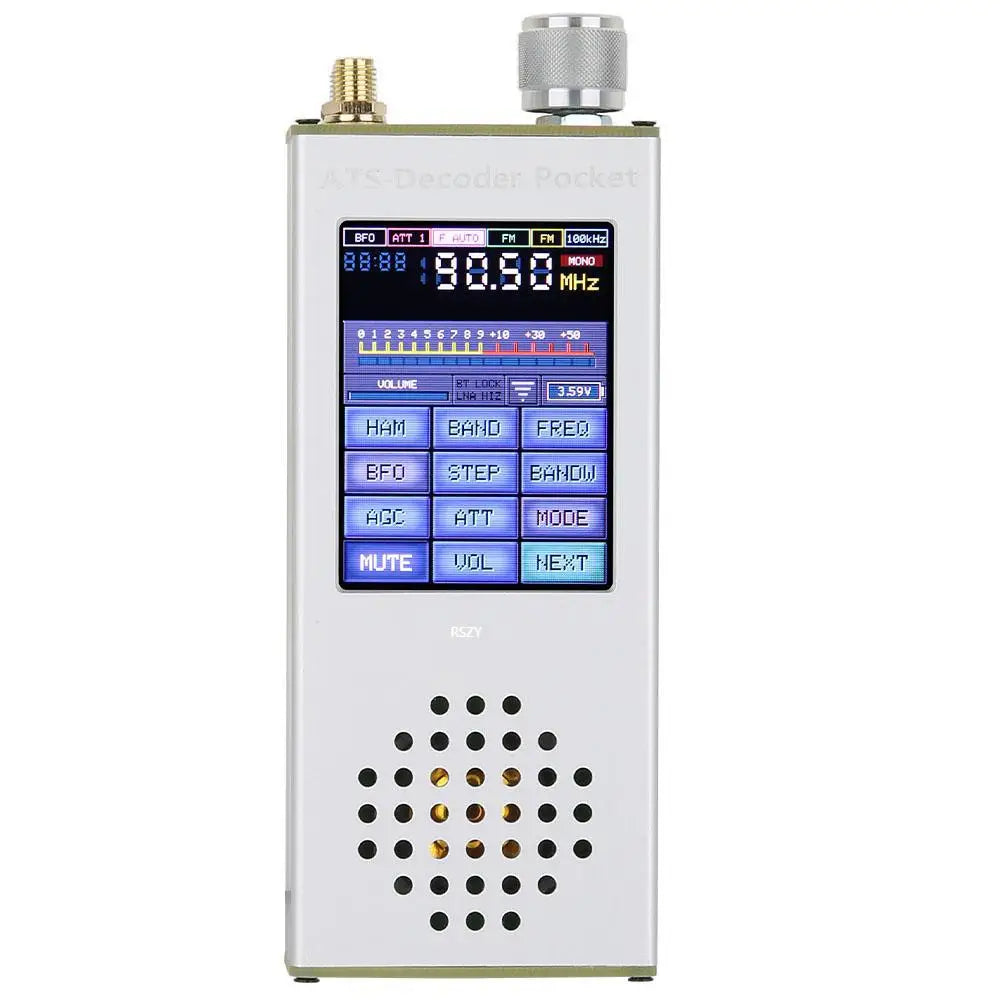

- 2.4 -inch touch screen

- Outage audio power 1.5W

- Product size: 120 x 115 x 48mm/4.7 x 4.5 x 1.9" (excluding protruding part of the size)



Frequency Range:

- FM: 64-108MHz/RDS function

- LW: 153-500KHz

- MW: 520-1710kHz

- SW: 1730-30000KHz

- SSB: 17030kHz



Functions:

1. With a 2.4 -inch touch screen

2. Support broadcast search

3. Support digital keyboard direct input frequency

4. Support HAM band fast channel

5. Support AM bandwidth: 1-6KHz

6. Support SSB bandwidth: 0.5-4.0KHz



Package Included:

-- 1 x ATS-Decoder Pocket Radio Receiver
